An alignment constraint specifies a alignment line that a set of nodes must be constrained to by an exact amount. More...

#include <compound_constraints.h>

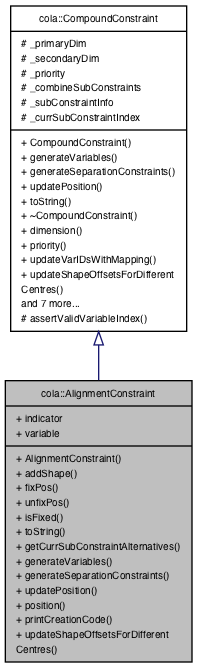

Inheritance diagram for cola::AlignmentConstraint:

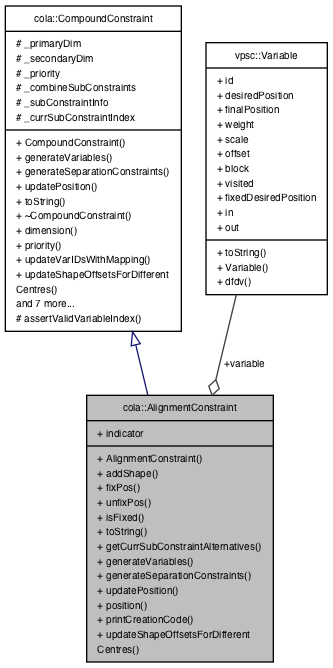

Collaboration diagram for cola::AlignmentConstraint:

Public Member Functions
	AlignmentConstraint (const vpsc::Dim dim, double position=0.0)
	Constructs a new AlignmentConstraint in the specified dimension. More...

void	addShape (const unsigned int index, const double offset)
	Mark a node as being part of this alignment constraint. More...

void	fixPos (double pos)
	Mark the alignment as ideally having a fixed position. More...

void	unfixPos (void)
	Mark the alignment as not having a fixed position. More...

bool	isFixed (void) const
	Indicates if the alignment position is marked as fixed. More...

std::string	toString (void) const
	Returns a textual description of the compound constraint. More...

void	generateVariables (const vpsc::Dim dim, vpsc::Variables &vars)
	Implemented by the compound constraint to generate any additional required variables in the given dimension. More...

void	generateSeparationConstraints (const vpsc::Dim dim, vpsc::Variables &vars, vpsc::Constraints &cs, vpsc::Rectangles &bbs)
	Implemented by the compound constraint to generate the low-level separation constraints in the given dimension. More...

void	updatePosition (const vpsc::Dim dim)
	Implemented by the compound constraint to send position information back to the interface. More...

Public Attributes
void *	indicator

Detailed Description

An alignment constraint specifies a alignment line that a set of nodes must be constrained to by an exact amount.

This is represented as a variable representing the position of a vertical or horizontal and a then group of nodes and offsets for those nodes such that the nodes must be spaced exactly at those offsets from the alignment position.

Optionally, the alignment may be given a suggested position and/or marked as "fixed". When fixed, the position variable will be given a higher weight to attempt to keep it at that position.

Constructor & Destructor Documentation

◆ AlignmentConstraint()

cola::AlignmentConstraint::AlignmentConstraint	(	const vpsc::Dim	dim,
		double	position = `0.0`
	)

Constructs a new AlignmentConstraint in the specified dimension.

Parameters

[in] dim The dimension the constraints will operate in.

Member Function Documentation

◆ addShape()

void cola::AlignmentConstraint::addShape	(	const unsigned int	index,
		const double	offset
	)

Mark a node as being part of this alignment constraint.

Parameters

[in]	index	The index of the node in the Rectangles vector.
[in]	offset	The exact amount to separate the node from the alignment line. Negative if left-of, positive if right-of. Will usually be equal to half a node's size if aligning to the side of a node, or zero if aligning with the centre of a node.

Referenced by dialect::SepCo::generateColaConstraints().

Here is the caller graph for this function:

◆ fixPos()

void cola::AlignmentConstraint::fixPos ( double pos )

Mark the alignment as ideally having a fixed position.

This causes the position variable for the alignment to be given the ideal position pos and a higher weight.

Parameters

[in] pos The ideal position value for the alignment.

◆ generateSeparationConstraints()

void cola::AlignmentConstraint::generateSeparationConstraints	(	const vpsc::Dim	dim,
		vpsc::Variables &	var,
		vpsc::Constraints &	cs,
		vpsc::Rectangles &	bbs
	)

virtual

Implemented by the compound constraint to generate the low-level separation constraints in the given dimension.

These constraints will be added to the list of constraints cs.

Parameters

[in]	dim	The current active dimension.
[in]	vars	The list of variables for the overall problem instance.
[in,out]	cs	The list of constraints to which the generated constraints will be added.
[in]	bbs	The list of bounding boxes for all rectangles in the current problem. It has the same order as vars.

Implements cola::CompoundConstraint.

◆ generateVariables()

void cola::AlignmentConstraint::generateVariables	(	const vpsc::Dim	dim,
		vpsc::Variables &	vars
	)

virtual

Implemented by the compound constraint to generate any additional required variables in the given dimension.

Generate any additional variables required by this compound constraint when operating in the given dimension dim and add them to vars. These variables should be cleaned up by the caller after the VPSC problem is solved.

The variables' ideal position and weight should be set by the compound constraint and they should be added to the end of vars.

Parameters

[in]	dim	The current active dimension.
[in,out]	vars	The list of variables for the overall problem instance to which any variables generated should be appended.

Implements cola::CompoundConstraint.

◆ isFixed()

bool cola::AlignmentConstraint::isFixed ( void ) const

Indicates if the alignment position is marked as fixed.

Returns: True if the alignment position is marked as fixed, or false otherwise.

◆ toString()

std::string cola::AlignmentConstraint::toString ( void ) const

virtual

Returns a textual description of the compound constraint.

Returns: A string describing the compound constraint.

Implements cola::CompoundConstraint.

◆ unfixPos()

void cola::AlignmentConstraint::unfixPos ( void )

Mark the alignment as not having a fixed position.

This is the default.

◆ updatePosition()

void cola::AlignmentConstraint::updatePosition ( const vpsc::Dim dim )

virtual

Implemented by the compound constraint to send position information back to the interface.

This will be called for each compound constraint once the VPSC instance is solved to allow them to pass information such as variable values back to the graphical user interface.

Parameters

[in] dim The current active dimension.

Reimplemented from cola::CompoundConstraint.

Member Data Documentation

◆ indicator

void* cola::AlignmentConstraint::indicator

Generic pointer to an indicator object being used to represent this compound constraint in the GUI.

The documentation for this class was generated from the following files:

libcola/compound_constraints.h
libcola/compound_constraints.cpp
