cola::BoundaryConstraint Class Reference

A boundary constraint specifies a bounding line that a set of nodes must be either to the left or right of. More...

#include <compound_constraints.h>

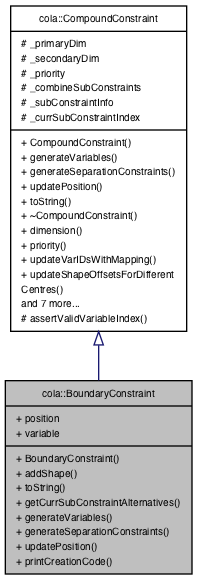

Inheritance diagram for cola::BoundaryConstraint:

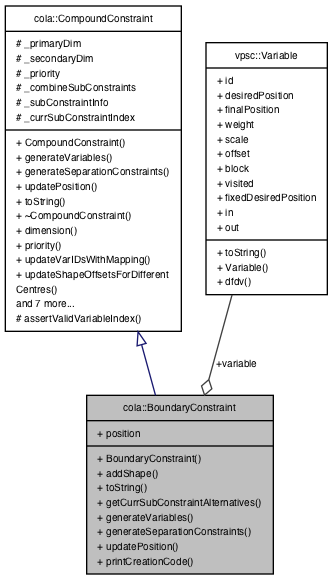

Collaboration diagram for cola::BoundaryConstraint:

Public Member Functions
	BoundaryConstraint (const vpsc::Dim dim)
	Constructs a new BoundaryConstraint in the specified dimension. More...
void	addShape (const unsigned int index, const double offset)
	Mark a node as being part of this boundary constraint. More...
std::string	toString (void) const
	Returns a textual description of the compound constraint. More...
void	generateVariables (const vpsc::Dim dim, vpsc::Variables &vars)
	Implemented by the compound constraint to generate any additional required variables in the given dimension. More...
void	generateSeparationConstraints (const vpsc::Dim dim, vpsc::Variables &vars, vpsc::Constraints &cs, vpsc::Rectangles &bbs)
	Implemented by the compound constraint to generate the low-level separation constraints in the given dimension. More...
void	updatePosition (const vpsc::Dim dim)
	Implemented by the compound constraint to send position information back to the interface. More...

Public Attributes
double	position
	Holds the position of the boundary line, once layout is complete.

Detailed Description

A boundary constraint specifies a bounding line that a set of nodes must be either to the left or right of.

A boundary constraint gives a bounding line in a particular dimension (with position stored in a variable) and a set of nodes required to be to the left of that line and nodes required to be to the right of the line. Separations are determined by offsets passed to addShape().

Constructor & Destructor Documentation

BoundaryConstraint()

cola::BoundaryConstraint::BoundaryConstraint

(

const vpsc::Dim

dim

)

Constructs a new BoundaryConstraint in the specified dimension.

Parameters

[in]

dim

The dimension the constraints will operate in.

Member Function Documentation

addShape()

void cola::BoundaryConstraint::addShape	(	const unsigned int	index,
		const double	offset
	)

Mark a node as being part of this boundary constraint.

Parameters

[in]	index	The index of the node in the Rectangles vector.
[in]	offset	The minimum amount to separate the node from the boundary line. Negative if left-of, positive if right-of. Will usually be equal to half a node's size plus a buffer amount.

generateSeparationConstraints()

void cola::BoundaryConstraint::generateSeparationConstraints ( const vpsc::Dim  dim, vpsc::Variables &  var, vpsc::Constraints &  cs, vpsc::Rectangles &  bbs  )

virtual

Implemented by the compound constraint to generate the low-level separation constraints in the given dimension.

These constraints will be added to the list of constraints cs.

Parameters

[in]	dim	The current active dimension.
[in]	vars	The list of variables for the overall problem instance.
[in,out]	cs	The list of constraints to which the generated constraints will be added.
[in]	bbs	The list of bounding boxes for all rectangles in the current problem. It has the same order as vars.

Implements cola::CompoundConstraint.

generateVariables()

void cola::BoundaryConstraint::generateVariables ( const vpsc::Dim  dim, vpsc::Variables &  vars  )

virtual

Implemented by the compound constraint to generate any additional required variables in the given dimension.

Generate any additional variables required by this compound constraint when operating in the given dimension dim and add them to vars. These variables should be cleaned up by the caller after the VPSC problem is solved.

The variables' ideal position and weight should be set by the compound constraint and they should be added to the end of vars.

Parameters

[in]	dim	The current active dimension.
[in,out]	vars	The list of variables for the overall problem instance to which any variables generated should be appended.

Implements cola::CompoundConstraint.

References position.

toString()

std::string cola::BoundaryConstraint::toString ( void  ) const

virtual

Returns a textual description of the compound constraint.

Returns

A string describing the compound constraint.

Implements cola::CompoundConstraint.

updatePosition()

void cola::BoundaryConstraint::updatePosition ( const vpsc::Dim  dim )

virtual

Implemented by the compound constraint to send position information back to the interface.

This will be called for each compound constraint once the VPSC instance is solved to allow them to pass information such as variable values back to the graphical user interface.

Parameters

[in]

dim

The current active dimension.

Reimplemented from cola::CompoundConstraint.

References position.

---

The documentation for this class was generated from the following files:

• libcola/compound_constraints.h
• libcola/compound_constraints.cpp
