cola::PageBoundaryConstraints Class Reference

A page boundary contraint specifies constraints that attempt to keep the given nodes within a defined rectangular region. More...

#include <compound_constraints.h>

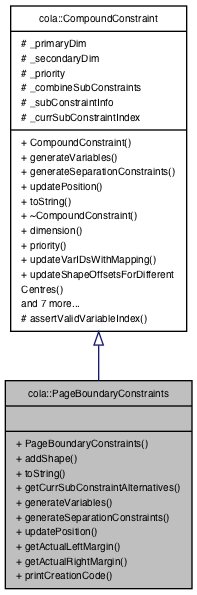

Inheritance diagram for cola::PageBoundaryConstraints:

Collaboration diagram for cola::PageBoundaryConstraints:

Public Member Functions
	PageBoundaryConstraints (double xLow, double xHigh, double yLow, double yHigh, double weight=100.0)
	Constructs a new PageBoundaryConstraints object with given page boundary positions and weight. More...
void	addShape (unsigned index, double halfW, double halfH)
	Mark a node as being contained within this page boundary. More...
std::string	toString (void) const
	Returns a textual description of the compound constraint. More...
void	generateVariables (const vpsc::Dim dim, vpsc::Variables &vars)
	Implemented by the compound constraint to generate any additional required variables in the given dimension. More...
void	generateSeparationConstraints (const vpsc::Dim dim, vpsc::Variables &vars, vpsc::Constraints &gcs, vpsc::Rectangles &bbs)
	Implemented by the compound constraint to generate the low-level separation constraints in the given dimension. More...
void	updatePosition (const vpsc::Dim dim)
	Implemented by the compound constraint to send position information back to the interface. More...

Detailed Description

A page boundary contraint specifies constraints that attempt to keep the given nodes within a defined rectangular region.

This compound constraint creates dummy variables for each of the four edges of the page and constraints between all nodes and these dummy vars such that nodes are contained between the edges. The variables for the page edges have a high weight but will "balloon out" if other constraints force nodes to stick out past the ideal edge positions.

Constructor & Destructor Documentation

PageBoundaryConstraints()

cola::PageBoundaryConstraints::PageBoundaryConstraints	(	double	xLow,
		double	xHigh,
		double	yLow,
		double	yHigh,
		double	weight = 100.0
	)

Constructs a new PageBoundaryConstraints object with given page boundary positions and weight.

Parameters

[in]	xLow	The position of the left edge of the page.
[in]	xHigh	The position of the right edge of the page.
[in]	yLow	The position of the bottom edge of the page.
[in]	yHigh	The position of the top edge of the page.
[in]	weight	The weight to give the positions variables for the page edges. The default is 100.0.

References vpsc::XDIM, and vpsc::YDIM.

Member Function Documentation

addShape()

void cola::PageBoundaryConstraints::addShape	(	unsigned	index,
		double	halfW,
		double	halfH
	)

Mark a node as being contained within this page boundary.

Parameters

[in]	index	The index of the node in the Rectangles vector.
[in]	halfW	Half of the width of the node. Needed because node position variables represent their centre.
[in]	halfH	Half of the height of the node.

generateSeparationConstraints()

void cola::PageBoundaryConstraints::generateSeparationConstraints ( const vpsc::Dim  dim, vpsc::Variables &  var, vpsc::Constraints &  cs, vpsc::Rectangles &  bbs  )

virtual

Implemented by the compound constraint to generate the low-level separation constraints in the given dimension.

These constraints will be added to the list of constraints cs.

Parameters

[in]	dim	The current active dimension.
[in]	vars	The list of variables for the overall problem instance.
[in,out]	cs	The list of constraints to which the generated constraints will be added.
[in]	bbs	The list of bounding boxes for all rectangles in the current problem. It has the same order as vars.

Implements cola::CompoundConstraint.

generateVariables()

void cola::PageBoundaryConstraints::generateVariables ( const vpsc::Dim  dim, vpsc::Variables &  vars  )

virtual

Implemented by the compound constraint to generate any additional required variables in the given dimension.

Generate any additional variables required by this compound constraint when operating in the given dimension dim and add them to vars. These variables should be cleaned up by the caller after the VPSC problem is solved.

The variables' ideal position and weight should be set by the compound constraint and they should be added to the end of vars.

Parameters

[in]	dim	The current active dimension.
[in,out]	vars	The list of variables for the overall problem instance to which any variables generated should be appended.

Implements cola::CompoundConstraint.

toString()

std::string cola::PageBoundaryConstraints::toString ( void  ) const

virtual

Returns a textual description of the compound constraint.

Returns

A string describing the compound constraint.

Implements cola::CompoundConstraint.

References vpsc::XDIM, and vpsc::YDIM.

updatePosition()

void cola::PageBoundaryConstraints::updatePosition ( const vpsc::Dim  dim )

virtual

Implemented by the compound constraint to send position information back to the interface.

This will be called for each compound constraint once the VPSC instance is solved to allow them to pass information such as variable values back to the graphical user interface.

Parameters

[in]

dim

The current active dimension.

Reimplemented from cola::CompoundConstraint.

---

The documentation for this class was generated from the following files:

• libcola/compound_constraints.h
• libcola/compound_constraints.cpp
