cola::RectangularCluster Class Reference

Defines a rectangular cluster, either variable-sized with floating sides or a fixed size based on a particular rectangle. More...

#include <cluster.h>

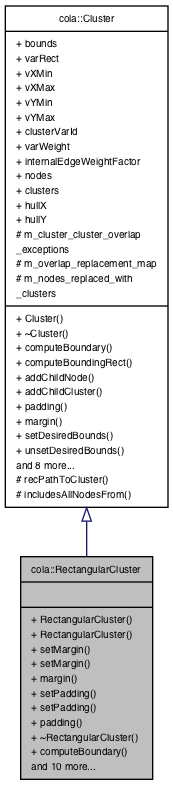

Inheritance diagram for cola::RectangularCluster:

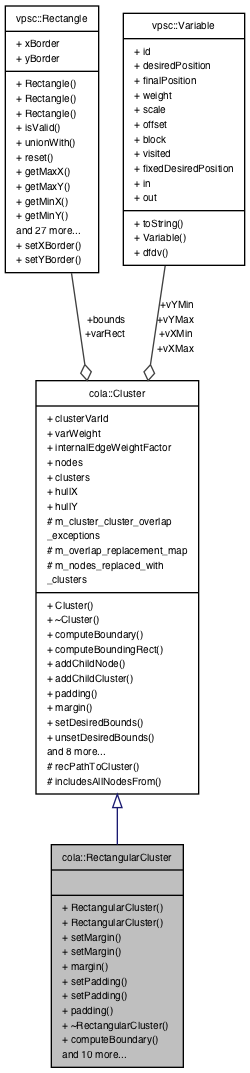

Collaboration diagram for cola::RectangularCluster:

Public Member Functions
	RectangularCluster ()
	A rectangular cluster of variable size that contains its children.
	RectangularCluster (unsigned rectIndex)
	A fixed size rectangular cluster based on a particular rectangle. More...
void	setMargin (double margin)
	Sets the margin size for this cluster. More...
void	setMargin (const cola::Box margin)
	Sets the margin box for this cluster. More...
cola::Box	margin (void) const
	Returns the margin box for this cluster. More...
void	setPadding (double padding)
	Sets the padding size for this cluster. More...
void	setPadding (const cola::Box padding)
	Sets the padding box for this cluster. More...
cola::Box	padding (void) const
	Returns the padding box for this cluster. More...
virtual void	addChildNode (unsigned index)
	Mark a rectangle as being a child of this cluster. More...
Public Member Functions inherited from cola::Cluster
void	addChildCluster (Cluster *cluster)
	Mark a cluster as being a sub-cluster of this cluster. More...

Detailed Description

Defines a rectangular cluster, either variable-sized with floating sides or a fixed size based on a particular rectangle.

The chosen constructor decides the type and behaviour of the cluster.

Constructor & Destructor Documentation

RectangularCluster()

cola::RectangularCluster::RectangularCluster

(

unsigned

rectIndex

)

A fixed size rectangular cluster based on a particular rectangle.

This rectangle might be constrained in the other ways like normal rectangles.

Parameters

[in]

rectIndex

The index of the rectangle that this cluster represents.

References vpsc::XDIM, and vpsc::YDIM.

Member Function Documentation

addChildNode()

void cola::RectangularCluster::addChildNode ( unsigned  index )

virtual

Mark a rectangle as being a child of this cluster.

Parameters

[in]

index

The index of the Rectangle in the rectangles vector.

Reimplemented from cola::Cluster.

References cola::Cluster::addChildNode().

Referenced by dialect::Graph::buildRootCluster().

Here is the call graph for this function:

Here is the caller graph for this function:

margin()

Box cola::RectangularCluster::margin ( void  ) const

virtual

Returns the margin box for this cluster.

Returns

The margin box for the cluster.

Reimplemented from cola::Cluster.

Referenced by setMargin().

Here is the caller graph for this function:

padding()

Box cola::RectangularCluster::padding ( void  ) const

virtual

Returns the padding box for this cluster.

Returns

The padding box for the cluster.

Reimplemented from cola::Cluster.

Referenced by setPadding().

Here is the caller graph for this function:

setMargin() [1/2]

void cola::RectangularCluster::setMargin

(

double

margin

)

Sets the margin size for this cluster.

This value represents the outer spacing that will be put between the cluster boundary on all sides and other clusters (plus their margin) and rectangles at the same level when non-overlap constraints are enabled.

Parameters

[in]

margin

The size of the margin for this cluster.

References margin().

Here is the call graph for this function:

setMargin() [2/2]

void cola::RectangularCluster::setMargin

(

const cola::Box

margin

)

Sets the margin box for this cluster.

This box represents the outer spacing that will be put between the cluster boundary and other clusters (plus their margin) and rectangles at the same level when non-overlap constraints are enabled.

Parameters

[in]

margin

The box representing the margins for this cluster.

References margin().

Here is the call graph for this function:

setPadding() [1/2]

void cola::RectangularCluster::setPadding

(

double

padding

)

Sets the padding size for this cluster.

This value represents the inner spacing that will be put between the cluster boundary and other child clusters (plus their margin) and child rectangles on all sides.

Parameters

[in]

padding

The size of the padding for this cluster.

References padding().

Here is the call graph for this function:

setPadding() [2/2]

void cola::RectangularCluster::setPadding

(

const cola::Box

padding

)

Sets the padding box for this cluster.

This box represents the inner spacing that will be put between the cluster boundary and other child clusters (plus their margin) and child rectangles for each edge.

Parameters

[in]

padding

The Box representing padding values for this cluster.

References padding().

Here is the call graph for this function:

---

The documentation for this class was generated from the following files:

• libcola/cluster.h
• libcola/cluster.cpp
