Holds the cluster hierarchy specification for a diagram. More...

#include <cluster.h>

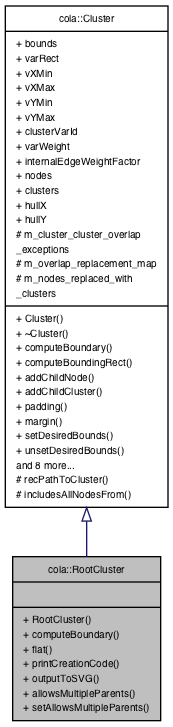

Inheritance diagram for cola::RootCluster:

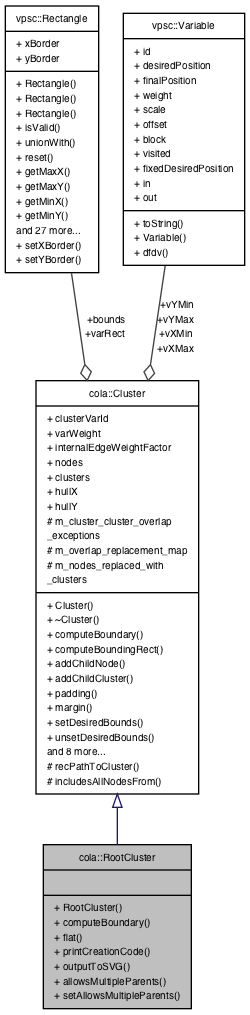

Collaboration diagram for cola::RootCluster:

Public Member Functions
bool	allowsMultipleParents (void) const

void	setAllowsMultipleParents (const bool value)

Public Member Functions inherited from cola::Cluster
virtual void	addChildNode (unsigned index)
	Mark a rectangle as being a child of this cluster. More...

void	addChildCluster (Cluster *cluster)
	Mark a cluster as being a sub-cluster of this cluster. More...

Detailed Description

Holds the cluster hierarchy specification for a diagram.

This is not considered a cluster itself, but it records all the nodes in the diagram not contained within any clusters, as well as optionally a hierarchy of clusters.

You can add clusters via addChildCluster() and nodes via addChildNode().

You can specify just the shapes contained in clusters, but not the nodes at this top level—the library will add any remaining nodes not appearing in the cluster hierarchy as children of the root cluster.

It is possible to add a node as the child of two parent clusters. In this case, the clusters will overlap to contain this (and possibly other nodes). The library will warn you if you do this unless you have called the method setAllowsMultipleParents() to mark this intention.

Be careful not to create cycles in the cluster hierarchy (i.e., to mark two clusters as children of each other. The library does not check for this and strange things may occur.
