A GhostNode represents another Node. More...

#include <graphs.h>

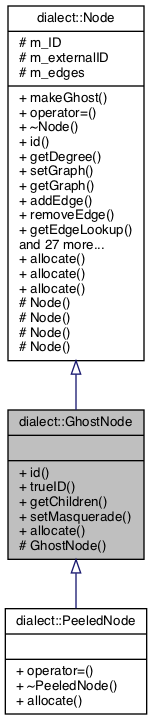

Inheritance diagram for dialect::GhostNode:

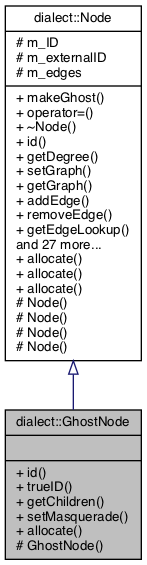

Collaboration diagram for dialect::GhostNode:

Public Member Functions
virtual id_type	id (void) const
	Return an appropriate ID number. More...

id_type	trueID (void) const
	Simple way to get the true ID of this GhostNode, even if it is currently set to masquerade as the Node it represents.

virtual Nodes	getChildren (void) const
	As in the Node class, get the neighbours of this Node that sit as the target end of the connecting Edge. More...

void	setMasquerade (bool doMasquerade)
	Say whether the GhostNode should masquerade as the original Node.

Public Member Functions inherited from dialect::Node
GhostNode_SP	makeGhost (void) const
	Allocate a GhostNode of this Node.

dialect::Node &	operator= (const dialect::Node &)=default
	Copy-assignment operator.

virtual	~Node (void)=default
	Destructor.

unsigned	getDegree (void) const
	Check the degree (number of incident Edges) of the Node. More...

void	setGraph (Graph &graph)
	Tell the Node which Graph it belongs to. More...

Graph *	getGraph (void)
	Access the Graph to which the Node belongs.

void	addEdge (const Edge_SP &edge)
	Add an incident Edge.

void	removeEdge (const dialect::Edge &edge)
	Remove an incident Edge.

const EdgesById &	getEdgeLookup (void) const
	Read-only access to this Node's lookup map for Edges by their ID.

EdgesById	getCopyOfEdgeLookup (void) const
	Get a copy of this Node's lookup map for Edges by their ID.

void	copyGeometry (const dialect::Node &other)
	Give this Node the same coordinates and dimensions as another.

void	copyOtherGhostProperties (const dialect::Node &other)
	Besides copying geometry, there may be other properties we wish to copy; in particular, properties that are suitable to be copied by a GhostNode.

dimensions	getHalfDimensions (void) const
	Get an ordered pair (half-width, half-height) for this Node.

dimensions	getDimensions (void) const
	Get an ordered pair (width, height) for this Node.

BoundingBox	getBoundingBox (void) const
	Get the bounding box for this Node.

Avoid::Point	getBoundaryCompassPt (CompassDir dir) const
	Get the point on the boundary of this Node in a given direction from its centre.

void	setCentre (double cx, double cy)
	Set the position of the node, by setting its centre coordinates.

void	translate (double dx, double dy)
	Update the position of the node, by adding to its centre coordinates.

void	applyPlaneMap (PlaneMap map)
	Apply a mapping from libavoid Points to libavoid Points, to this Node's centre.

Avoid::Point	getCentre (void) const
	Get the centre coordinates of the node.

void	setExternalId (unsigned id)
	Set an externally-determined ID. (This is useful for TGLF and other interfacing operations.)

int	getExternalId (void)
	Get the external ID.

dialect::Nodes	getNeighbours (void) const
	Get the neighbours of this Node.

dialect::Nodes	getNeighboursCwCyclic (void) const
	Get the neighbours of this Node, listed in clockwise cyclic order (assuming the usual graphics convention of x increasing to the right and y increasing downward).

void	setDims (double w, double h)
	Set the dimensions of the node.

void	setBoundingBox (double x, double X, double y, double Y)
	Set the bounding box of the node. This sets both the dimensions and the centre point. More...

void	addPadding (double dw, double dh)
	Add padding to the node's dimensions. More...

void	updatePosnFromRect (vpsc::Rectangle *r)
	Update the position of this Node to equal that of the given Rectangle.

void	updateXCoordFromRect (vpsc::Rectangle *r)
	Update the x-coordinate of this Node to equal that of the given Rectangle.

void	updateYCoordFromRect (vpsc::Rectangle *r)
	Update the y-coordinate of this Node to equal that of the given Rectangle.

Avoid::Polygon	makeLibavoidPolygon (void) const
	Build and return a Polygon to represent this Node in libavoid.

bool	isRoot (void) const
	Check whether this Node has been marked as being a root. This is useful when working with trees, and can be safely ignored when working with other sorts of graphs.

void	setIsRoot (bool isRoot)
	Say whether this Node is a root. This is useful when working with trees, and can be safely ignored when working with other sorts of graphs.

bool	liesOppositeSegment (const LineSegment &seg, bool openInterval=false)
	Check whether this Node lies opposite a LineSegment, i.e. whether the sides of the Node lying parallel to the segment intersect its interval. More...

std::string	writeSvg (bool useExternalId=false) const
	Write SVG to represent this Node. More...

Static Public Member Functions
static GhostNode_SP	allocate (const Node &node)
	Factory function. More...

Static Public Member Functions inherited from dialect::Node
static Node_SP	allocate (void)
	Factory function, to get a shared pointer to a Node allocated on the heap. We make the constructors protected, in order to ensure that Nodes always come with a control block. More...

static Node_SP	allocate (double w, double h)
	Convenience factory function to set dimensions.

static Node_SP	allocate (double cx, double dy, double w, double h)
	Convenience factory function to set position and dimensions.

Protected Member Functions
	GhostNode (const Node &node)
	We always make a GhostNode as a copy of a plain Node.

Protected Member Functions inherited from dialect::Node
	Node (void)
	Default constructor. More...

	Node (double w, double h)
	Construct with dimensions.

	Node (double cx, double cy, double w, double h)
	Construct with position and dimensions.

	Node (const dialect::Node &)=default
	Copy constructor.

Additional Inherited Members
Protected Attributes inherited from dialect::Node
const id_type	m_ID
	An instance's own unique ID:

int	m_externalID = -1

EdgesById	m_edges
	Lookup table for incident Edges by Edge's ID:

Detailed Description

A GhostNode represents another Node.

When working with techniques that involve decomposing a graph into parts, and then reassembling those parts, it is often useful to have a node in one part represent a node in another part. For example this can be a useful way to manage the nodes where the two parts intersect. The GhostNode class supports this by representing a given Node.

Member Function Documentation

◆ allocate()

static GhostNode_SP dialect::GhostNode::allocate ( const Node & node )

inlinestatic

Factory function.

Returns: A shared_ptr to GhostNode (GhostNode_SP).

◆ getChildren()

Nodes GhostNode::getChildren ( void ) const

virtual

As in the Node class, get the neighbours of this Node that sit as the target end of the connecting Edge.

This method performs the same function as the overriden method in the base Node class. It is only reimplemented in order to ensure that the GhostNode's id() function is used properly.

Reimplemented from dialect::Node.

References id(), and dialect::Node::m_edges.

Here is the call graph for this function:
