Represents the arrangement of all Nbrs around a centre node. More...

#include <quadaction.h>

Collaboration diagram for dialect::Arrangement:

Public Member Functions
	Arrangement (Nbrs nbrs)
	Standard constructor. More...

std::vector< unsigned >	vacancy (void) const
	Get the "vacancy vector" for this Arrangement. More...

std::vector< unsigned >	dist (void) const
	Get the "distribution vector" for this Arrangement. More...

std::vector< unsigned >	rDist (void) const
	Get the "reduced distribution vector" for this Arrangement. More...

Assignment_SP	getBasicAssignment (void) const
	Get the "basic Assignment" for this Arrangement. More...

Assignment_SP	getAssignmentForQuadAction (std::string quadAction) const
	Get the Assignment resulting from a given quad action. More...

Assignments	computeNAssignments (unsigned N) const
	Compute all possible Assignments in which precisely N semiaxes are occupied, sorted by ascending cost. More...

Assignments	computeAllAssignments (void) const
	Compute all possible Assignments. More...

Public Attributes
Nbrs	nbrs
	All Nbrs in the Arrangement.

Nbrs	semis
	The semiaxes.

Quads	quads
	The quadrants.

Detailed Description

Represents the arrangement of all Nbrs around a centre node.

Constructor & Destructor Documentation

◆ Arrangement()

Arrangement::Arrangement ( Nbrs nbrs )

Standard constructor.

Parameters

[in] nbrs all the Nbrs of the (implied) centre node

Member Function Documentation

◆ computeAllAssignments()

Assignments Arrangement::computeAllAssignments ( void ) const

Compute all possible Assignments.

Returns: vector of Assignment_SPs. The ordering is such that any and all 4-assignments come first, in order of ascending cost, followed by any and all 3-assignments, again in order of ascending cost, then likewise for 2- and 1-assignments.

References computeNAssignments().

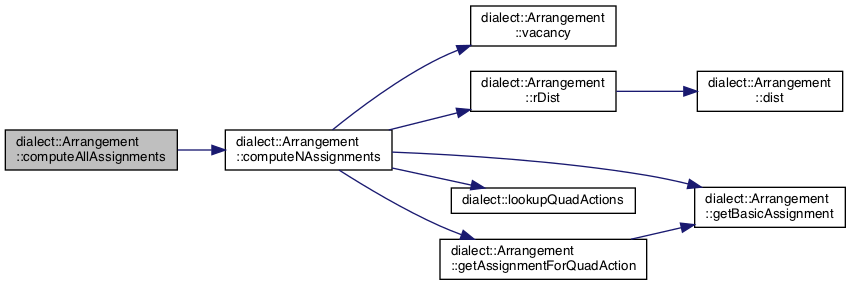

Here is the call graph for this function:

◆ computeNAssignments()

Assignments Arrangement::computeNAssignments ( unsigned N ) const

Compute all possible Assignments in which precisely N semiaxes are occupied, sorted by ascending cost.

Parameters

[in] N the number of semiaxes to be occupied

Returns: vector of Assignment_SPs, sorted by ascending cost.

References getAssignmentForQuadAction(), getBasicAssignment(), dialect::lookupQuadActions(), nbrs, quads, rDist(), dialect::SEMIAXIS_SETS_BY_CARDINALITY, and vacancy().

Referenced by computeAllAssignments().

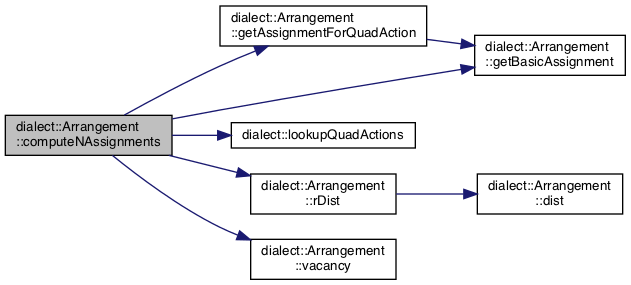

Here is the call graph for this function:

Here is the caller graph for this function:

◆ dist()

vector< unsigned > Arrangement::dist ( void ) const

Get the "distribution vector" for this Arrangement.

Returns: vector telling how many Nbrs are in each quadrant

References quads.

Referenced by rDist().

Here is the caller graph for this function:

◆ getAssignmentForQuadAction()

Assignment_SP Arrangement::getAssignmentForQuadAction ( std::string quadAction ) const

Get the Assignment resulting from a given quad action.

Parameters

[in] quadAction a string of four letters chosen from among {A, B, C, D}, representing the action to be taken in each of the four quadrants.

Returns: the Assignment resulting from the quad action.

References getBasicAssignment(), and quads.

Referenced by computeNAssignments().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ getBasicAssignment()

Assignment_SP Arrangement::getBasicAssignment ( void ) const

Get the "basic Assignment" for this Arrangement.

Returns: the Assignment in which no quad actions have been taken, i.e. in which the semiaxees are just as initially defined, and in which the cost is zero.

References semis.

Referenced by computeNAssignments(), and getAssignmentForQuadAction().

Here is the caller graph for this function:
