cola::DistributionConstraint Class Reference

A distribution constraint specifies an ordered set of alignment constraints and a fixed separation required between them. More...

#include <compound_constraints.h>

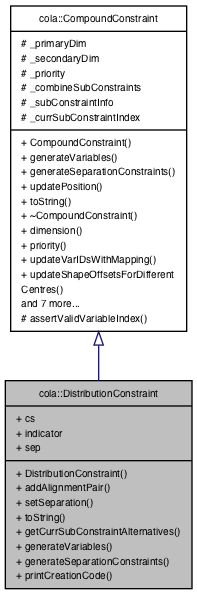

Inheritance diagram for cola::DistributionConstraint:

Collaboration diagram for cola::DistributionConstraint:

Public Member Functions
	DistributionConstraint (const vpsc::Dim dim)
	Constructs a new empty DistributionConstraint with a minimum or exact spacing. More...
void	addAlignmentPair (AlignmentConstraint *ac1, AlignmentConstraint *ac2)
	Mark a pair of alignment constraints as being part of this distribution constraint. More...
void	setSeparation (double sep)
	Alter the exact spacing between each pair of alignment constraints. More...
std::string	toString (void) const
	Returns a textual description of the compound constraint. More...
void	generateVariables (const vpsc::Dim dim, vpsc::Variables &vars)
	Implemented by the compound constraint to generate any additional required variables in the given dimension. More...
void	generateSeparationConstraints (const vpsc::Dim dim, vpsc::Variables &vars, vpsc::Constraints &gcs, vpsc::Rectangles &bbs)
	Implemented by the compound constraint to generate the low-level separation constraints in the given dimension. More...
Public Member Functions inherited from cola::CompoundConstraint
virtual void	updatePosition (const vpsc::Dim dim)
	Implemented by the compound constraint to send position information back to the interface. More...

Public Attributes
void *	indicator

Detailed Description

A distribution constraint specifies an ordered set of alignment constraints and a fixed separation required between them.

This compound constraint it used to keep a set of alignment constraints equally distributed.

If no separation distance is set, then it is detemined from the distance between the two outer alignments, divided by the number of alignments - 1.

Constructor & Destructor Documentation

DistributionConstraint()

cola::DistributionConstraint::DistributionConstraint

(

const vpsc::Dim

dim

)

Constructs a new empty DistributionConstraint with a minimum or exact spacing.

Parameters

[in]

dim

The dimension the constraints will operate in.

Member Function Documentation

addAlignmentPair()

void cola::DistributionConstraint::addAlignmentPair	(	AlignmentConstraint *	ac1,
		AlignmentConstraint *	ac2
	)

Mark a pair of alignment constraints as being part of this distribution constraint.

You should specify spacing beteen a set of alignments (e.g., {1, 2, 3, 4}) by calling this method with each neighbouring pair (e.g., {(1, 2), (2, 3), (3, 4)}).

Parameters

[in]	ac1	A pointer to the left AlignmentConstraint object of the pair.
[in]	ac2	A pointer to the right AlignmentConstraint object of the pair.

generateSeparationConstraints()

void cola::DistributionConstraint::generateSeparationConstraints ( const vpsc::Dim  dim, vpsc::Variables &  var, vpsc::Constraints &  cs, vpsc::Rectangles &  bbs  )

virtual

Implemented by the compound constraint to generate the low-level separation constraints in the given dimension.

These constraints will be added to the list of constraints cs.

Parameters

[in]	dim	The current active dimension.
[in]	vars	The list of variables for the overall problem instance.
[in,out]	cs	The list of constraints to which the generated constraints will be added.
[in]	bbs	The list of bounding boxes for all rectangles in the current problem. It has the same order as vars.

Implements cola::CompoundConstraint.

generateVariables()

void cola::DistributionConstraint::generateVariables ( const vpsc::Dim  dim, vpsc::Variables &  vars  )

virtual

Implemented by the compound constraint to generate any additional required variables in the given dimension.

Generate any additional variables required by this compound constraint when operating in the given dimension dim and add them to vars. These variables should be cleaned up by the caller after the VPSC problem is solved.

The variables' ideal position and weight should be set by the compound constraint and they should be added to the end of vars.

Parameters

[in]	dim	The current active dimension.
[in,out]	vars	The list of variables for the overall problem instance to which any variables generated should be appended.

Implements cola::CompoundConstraint.

setSeparation()

void cola::DistributionConstraint::setSeparation

(

double

sep

)

Alter the exact spacing between each pair of alignment constraints.

Parameters

[in]

sep

The exact distance to separate the alignment constraints.

toString()

std::string cola::DistributionConstraint::toString ( void  ) const

virtual

Returns a textual description of the compound constraint.

Returns

A string describing the compound constraint.

Implements cola::CompoundConstraint.

Member Data Documentation

indicator

void* cola::DistributionConstraint::indicator

Generic pointer to an indicator object being used to represent this compound constraint in the GUI.

---

The documentation for this class was generated from the following files:

• libcola/compound_constraints.h
• libcola/compound_constraints.cpp
