A PeeledNode is a type of GhostNode, used in the peeling process. More...
#include <peeling.h>
Inheritance diagram for dialect::PeeledNode:

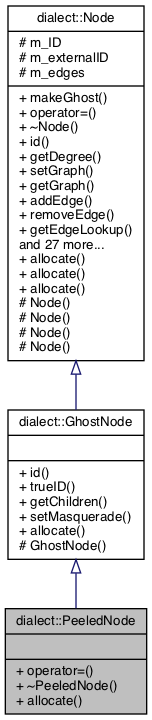

Collaboration diagram for dialect::PeeledNode:
Public Member Functions | |
| PeeledNode & | operator= (const PeeledNode &)=default |
| Copy-assignment operator. | |
| virtual | ~PeeledNode (void)=default |
| Destructor. | |
 Public Member Functions inherited from dialect::GhostNode | |
| virtual id_type | id (void) const |
| Return an appropriate ID number. More... | |
| id_type | trueID (void) const |
| Simple way to get the true ID of this GhostNode, even if it is currently set to masquerade as the Node it represents. | |
| virtual Nodes | getChildren (void) const |
| As in the Node class, get the neighbours of this Node that sit as the target end of the connecting Edge. More... | |
| void | setMasquerade (bool doMasquerade) |
| Say whether the GhostNode should masquerade as the original Node. | |
| Public Member Functions inherited from dialect::Node | |
| GhostNode_SP | makeGhost (void) const |
| Allocate a GhostNode of this Node. | |
| dialect::Node & | operator= (const dialect::Node &)=default |
| Copy-assignment operator. | |
| virtual | ~Node (void)=default |
| Destructor. | |
| unsigned | getDegree (void) const |
| Check the degree (number of incident Edges) of the Node. More... | |
| void | setGraph (Graph &graph) |
| Tell the Node which Graph it belongs to. More... | |
| Graph * | getGraph (void) |
| Access the Graph to which the Node belongs. | |
| void | addEdge (const Edge_SP &edge) |
| Add an incident Edge. | |
| void | removeEdge (const dialect::Edge &edge) |
| Remove an incident Edge. | |
| const EdgesById & | getEdgeLookup (void) const |
| Read-only access to this Node's lookup map for Edges by their ID. | |
| EdgesById | getCopyOfEdgeLookup (void) const |
| Get a copy of this Node's lookup map for Edges by their ID. | |
| void | copyGeometry (const dialect::Node &other) |
| Give this Node the same coordinates and dimensions as another. | |
| void | copyOtherGhostProperties (const dialect::Node &other) |
| Besides copying geometry, there may be other properties we wish to copy; in particular, properties that are suitable to be copied by a GhostNode. | |
| dimensions | getHalfDimensions (void) const |
| Get an ordered pair (half-width, half-height) for this Node. | |
| dimensions | getDimensions (void) const |
| Get an ordered pair (width, height) for this Node. | |
| BoundingBox | getBoundingBox (void) const |
| Get the bounding box for this Node. | |
| Avoid::Point | getBoundaryCompassPt (CompassDir dir) const |
| Get the point on the boundary of this Node in a given direction from its centre. | |
| void | setCentre (double cx, double cy) |
| Set the position of the node, by setting its centre coordinates. | |
| void | translate (double dx, double dy) |
| Update the position of the node, by adding to its centre coordinates. | |
| void | applyPlaneMap (PlaneMap map) |
| Apply a mapping from libavoid Points to libavoid Points, to this Node's centre. | |
| Avoid::Point | getCentre (void) const |
| Get the centre coordinates of the node. | |
| void | setExternalId (unsigned id) |
| Set an externally-determined ID. (This is useful for TGLF and other interfacing operations.) | |
| int | getExternalId (void) |
| Get the external ID. | |
| dialect::Nodes | getNeighbours (void) const |
| Get the neighbours of this Node. | |
| dialect::Nodes | getNeighboursCwCyclic (void) const |
| Get the neighbours of this Node, listed in clockwise cyclic order (assuming the usual graphics convention of x increasing to the right and y increasing downward). | |
| void | setDims (double w, double h) |
| Set the dimensions of the node. | |
| void | setBoundingBox (double x, double X, double y, double Y) |
| Set the bounding box of the node. This sets both the dimensions and the centre point. More... | |
| void | addPadding (double dw, double dh) |
| Add padding to the node's dimensions. More... | |
| void | updatePosnFromRect (vpsc::Rectangle *r) |
| Update the position of this Node to equal that of the given Rectangle. | |
| void | updateXCoordFromRect (vpsc::Rectangle *r) |
| Update the x-coordinate of this Node to equal that of the given Rectangle. | |
| void | updateYCoordFromRect (vpsc::Rectangle *r) |
| Update the y-coordinate of this Node to equal that of the given Rectangle. | |
| Avoid::Polygon | makeLibavoidPolygon (void) const |
| Build and return a Polygon to represent this Node in libavoid. | |
| bool | isRoot (void) const |
| Check whether this Node has been marked as being a root. This is useful when working with trees, and can be safely ignored when working with other sorts of graphs. | |
| void | setIsRoot (bool isRoot) |
| Say whether this Node is a root. This is useful when working with trees, and can be safely ignored when working with other sorts of graphs. | |
| bool | liesOppositeSegment (const LineSegment &seg, bool openInterval=false) |
| Check whether this Node lies opposite a LineSegment, i.e. whether the sides of the Node lying parallel to the segment intersect its interval. More... | |
| std::string | writeSvg (bool useExternalId=false) const |
| Write SVG to represent this Node. More... | |
Static Public Member Functions | |
| static PeeledNode_SP | allocate (const Node &node) |
| Factory function. More... | |
| Static Public Member Functions inherited from dialect::GhostNode | |
| static GhostNode_SP | allocate (const Node &node) |
| Factory function. More... | |
| Static Public Member Functions inherited from dialect::Node | |
| static Node_SP | allocate (void) |
| Factory function, to get a shared pointer to a Node allocated on the heap. We make the constructors protected, in order to ensure that Nodes always come with a control block. More... | |
| static Node_SP | allocate (double w, double h) |
| Convenience factory function to set dimensions. | |
| static Node_SP | allocate (double cx, double dy, double w, double h) |
| Convenience factory function to set position and dimensions. | |
Friends | |
| PeeledNode_SP | identifyRootNode (const Graph &graph) |
| Mark as "root" the PeeledNode having largest serial number. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from dialect::GhostNode | |
| GhostNode (const Node &node) | |
| We always make a GhostNode as a copy of a plain Node. | |
| Protected Member Functions inherited from dialect::Node | |
| Node (void) | |
| Default constructor. More... | |
| Node (double w, double h) | |
| Construct with dimensions. | |
| Node (double cx, double cy, double w, double h) | |
| Construct with position and dimensions. | |
| Node (const dialect::Node &)=default | |
| Copy constructor. | |
| Protected Attributes inherited from dialect::Node | |
| const id_type | m_ID |
| An instance's own unique ID: | |
| int | m_externalID = -1 |
| EdgesById | m_edges |
| Lookup table for incident Edges by Edge's ID: | |
Detailed Description
A PeeledNode is a type of GhostNode, used in the peeling process.
Member Function Documentation
◆ allocate()
|
inlinestatic |
Factory function.
- Returns
- A shared_ptr to PeeledNode (PeeledNode_SP).
Friends And Related Function Documentation
◆ identifyRootNode
|
friend |
Mark as "root" the PeeledNode having largest serial number.
- Note
- The Graph must contain only PeeledNodes.
- Returns
- The PeeledNode identified as root.
The documentation for this class was generated from the following files:
- libdialect/peeling.h
- libdialect/peeling.cpp
